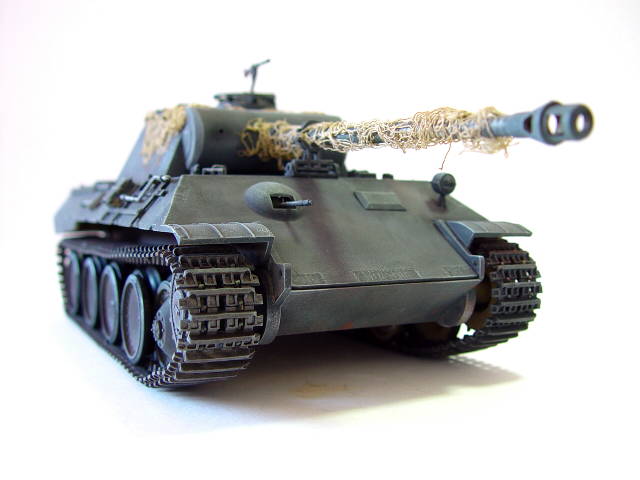

German Medium Tank - PzKpfw-V Panther - Tamiya MT123
Since 1943, during World War II, there appeared an unusually fast tank on the European Front the silhouetted among its German Medium tank, with its formidable power of attack and fast maneuverability, that soon became an object of terror to men of the Allied Forces. It put to a question, "Which was the best German Tank during the war ?" The majority of the people, without hesitation will answer the name "Panther". It is known that the PzKpfw IV and the Tiger II tanks were also produced by German technology and were both outstanding tanks. But the PzKpfw IV was meant to replaced by the Panther, and the Panther, showing improved attacking and defensive powers and accurate maneuverability on the field, soon became the German's main strength tank. The Tiger I with its 88mm gun would seem at first to be superior to the Panther's 75mm gun in attacking power. But when viewed from the point of armor piercing power of the shell, the Panther, with its 70 caliber KwK42 antitank gun and sloping armor proved much stronger in actual fighting than the Tiger I's 56 caliber KwK36 antitank gun with vertical side armor. The Tiger II tank, which should be called the 'improved Panther' was much stronger in attacking and defensive power than the Panther. However, considering the number of Panthers produced and used during this time, the Panther tank was still number 1.
The main strength German tanks at the start of the war were all unique in the sense that their design were completely based on German plans and ideas. But the Panther was influenced by the Soviet masterpiece tank T-34 which was seen for the first time on the east European Front. In the beginning of 1942, in order to fight against the T-34, the German military ordered a new tank from Daimler-Benz and M.A.N companies with the following specifications : weight- 35 tons; speed - 60km/h; armament-75mm long gun and armor, 60mm thick in front hull, 35mm in the rear and 100mm at the front of gun turret. Lastly, it was specified that the tank be equipped with a Maybach HL210, water cooled, V-type 12 cylinder engine. In May of the same year, M.A.N.'s model was chosen without waiting for completion of a prototype tank. However, there were 2 important modifications. First, in order to meet the military's demand, considerably more than the original 35 ton weight was needed. Second, the military ordered a change in the thickness of the frontal armor from 60mm to 80mm.
Because of these changes, the engine type had to be changed from Hl210 to HL230. Then, in order to accommodate this engine, a much better gear was needed, but mass production began without this last change, which resulted in frequent gear malfunction and related troubles. This became the Panther's greatest defect. In the same year, Daimler-Benz and Henschel were ordered to produce the Panther. Therefore, production was greatly increased and a total of 6283 Panther tanks were produced, second only to PzKpfw IV in number.
The first mass produced Panther type D was not equipped with a machine gun but after the experience of close battle, a 7.92mm MG34 was added to the Panther's right front hull armament beginning with its type A. The special feature of the Panther was the left and right driving mechanism. This created an interchangeability of movement, using the torsion bar system. By 1944, the Panther was further improved from Type A to Type G with a change in its side shape.
The Panther continued its activities against the Allied Forces throughout the latter half of the war. One of the famed battles it waged during this latter period probably is the one against the new Soviet JS II heavy tank on the eastern front.
The Panther at that time, was the main strength tank of the Gross Deutschland, the strongest German Mechanized Division, under the command of General Hasso von Manteuffel. The Panther reportedly destroyed 350 JS-II tanks and 20 other armored vehicles in the battle. It was a complete one sided victory for the Panther and one for the book of military history. The Panther, therefore, was an extremely balanced tactical tank and should be called a masterpiece destined to bear the last glory of German was technology. Its glorious name will forever remain in the records of the Second World War.
(From Tamiya Manual)

Specification :
Manufacturer : MAN, Daimler-Benz, MNH, Henschel
Chassis number : 210001-210254
                          211001-214000
850 produced from January to September 1943
Crew : 5
Weight : 43 tons
Length : 8.86 m
Width : 3.4 m
Height : 2.95 m
Radio : FuG5
Engine : Maybach HL230P30
Gearbox : 7 forward, 1 reverse
Speed : 46 km/h
Range : 200 km
Armament :
 one 7.5cm KwK42 L/70  (79 rounds)
one 7.92mm MG34 - coaxial (5,100 rounds)
one 7.92mm MG34
Traverse : 360° hydraulic
Elevation : -8° +18°
Sight : TZF12

  Panther
