    Models built from 1972 to present



LAV25 TUA from ESCI LAV25 TUA - ESCI 5028
Specification :
Country of Origin : USA
Crew : 3+6 (depends on configuration)
Configuration : 8 x 8
Armament : depends on variants
Wheelbase : 1.1m + 1.135m + 1.04m
Engine : Detroit Diesel 6V-53T, 6 cylinder diesel developing 275hp at 2,800 rpm
Length : 6.393m
Height overall : depends on configuration
Width : 2.499m
Ground clearance : 0.5m
Trench : 2.057m
Vertical obstacle : 0.5m
Fuel capacity : 300 lit
Fording : Amphibious		 Maximum road speed : 100km/hr
Maximum water speed : 10.46 km/hr
Maximum range : 668 km
Gradient : 70%
Side slope : 40%
Armor : 10mm (estimate)
Armor type : Steel
Night Vision equipment : Yes (passive, commander, gunner and driver)

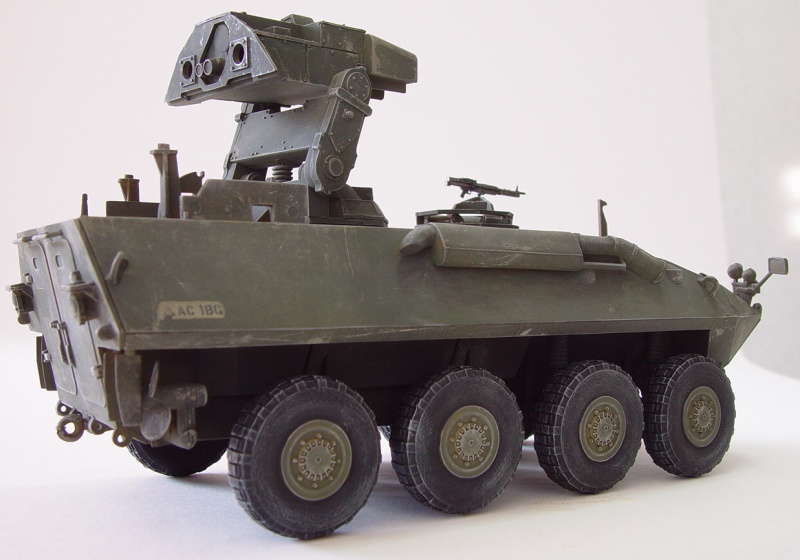

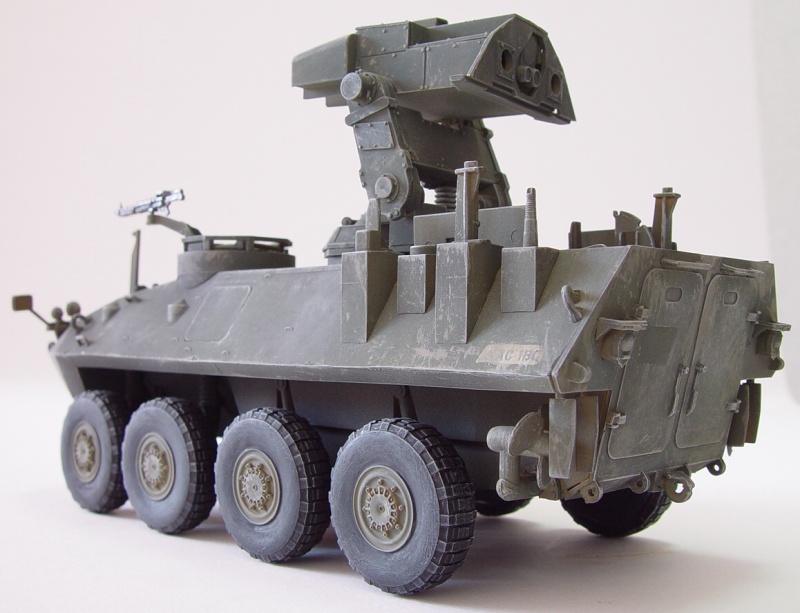

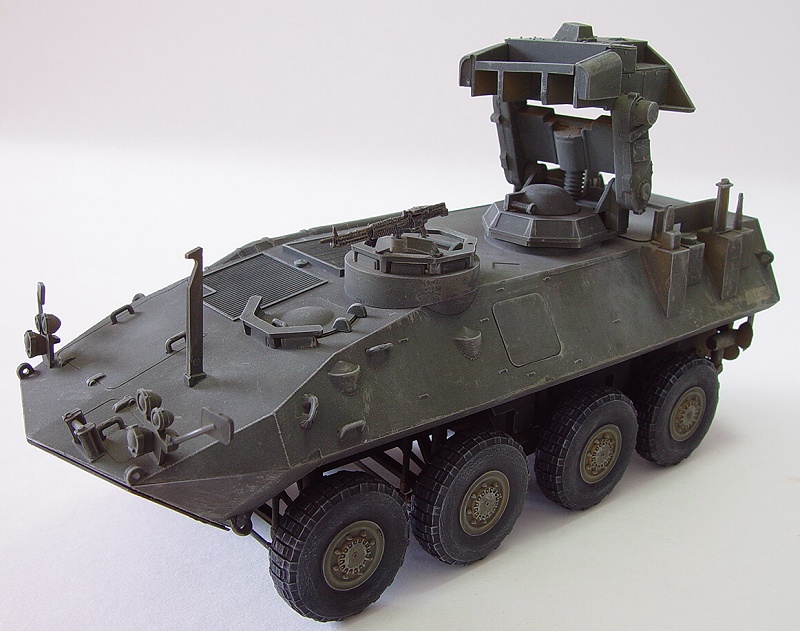

LAV25 image 1 LAV25 image 2 LAV25 image 3

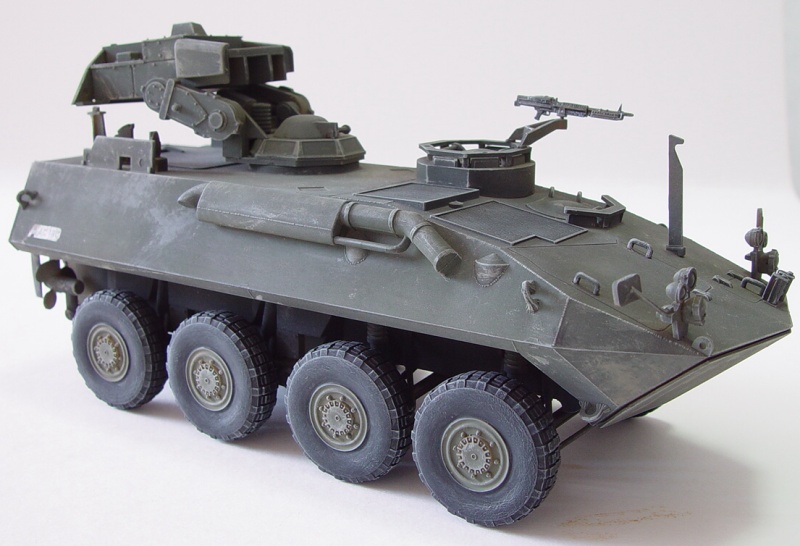

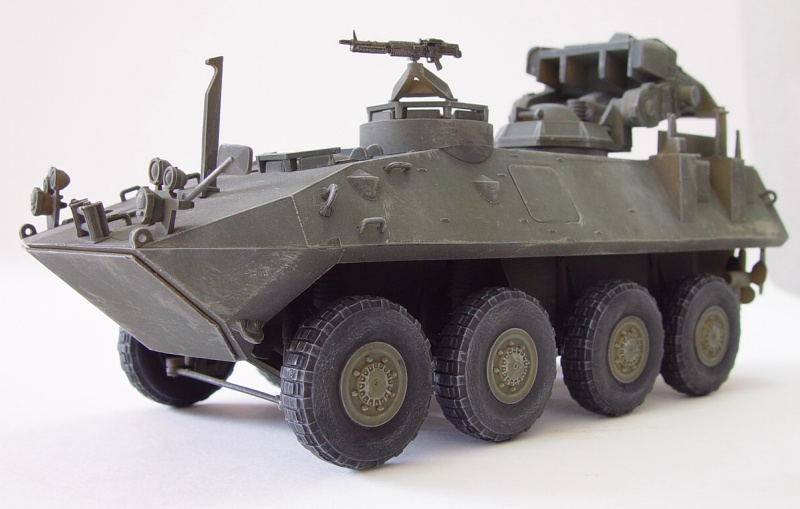

LAV25 image 4 LAV25 image 5 more coming..
