LVTP7A1 from Tamiya LVTP7A-1 - Tamiya 35136

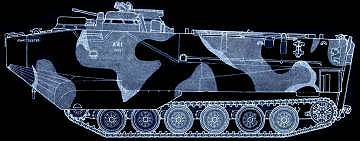

LVTP7A-1 front view LVTP7A-1 side view

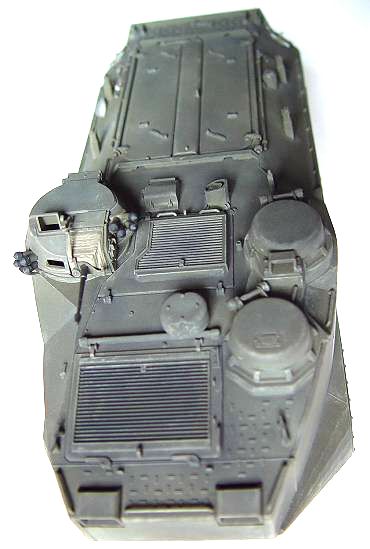

LVTP7A-1 rear view LVTP7A-1 top view

LVTP7A1 :lvpt7a1 image 7
Amphibious operations (landing personnel, equipment and supplies from ships via vehicles to a hostile shore) are considered by military tacticians to be the most complex and difficult of all military operations. The U.S.Marine Corps is the military organization in America charged with this responsibility, and is the only American service branch with the LVTP7A1 in its inventory. The LVTP (Landing Vehicle Tracked, Personnel), popularly knows as Amtracs (amphibious Tractors), were developed prior to and improved upon during WWII. The LVTP7, currently in use is now being replaced by the LVTP7A1 version which has been much improved. This versatile vehicle can navigate in ocean waves 3 meters high while carrying 25 fully equipped Marines to shore. It is a very large tracked vehicle, being almost the same length as the U.S. M1 Abrams main battle tank, including its main gun. The first LVT's entered combat during the Tarawa invasion in 1943, and in the ensuring 45 years has gone through many changes and requirements.
lvpt7a1 image 8 The LVTP7A1, known as the AAV7A1 at FMC, where the vehicle ic converted to the A1 configuration can now safely navigate in waters that would swamp their WW2 counterparts and can even withstand total immersion with a full cargo compartment without sinking.
A total of 1,579 LVTP7 units were programmed for production.
(From Tamiya Manual)


Specification :
Country of Origin : USA
Crew : 3 + 25
Armament : 1 x 12.7mm MG
Ammunition : 1,000 x 12.7mm
Height : 3.263m (overall), 3.12m (turret roof)
Engine : Detroit Diesel Model 8V-53T,8 cylinder, water cooled, turbocharged diesel developing 405bhp at 2,300 rpm

Length : 7.943m
Width : 3.27m
Ground clearance : 0.406m
Maximum Road Range : 482 km
Maximum Road speed : 64 km/hr
Maximum Water speed : 13.5 km/hr (waterjet), 7.2 km/hr (tracks)
Fuel capacity : 681 lit.
Fording : Amphibious
Vertical Obstacle : 0.914m
Trench : 2.438m
Weight, combat : 22,838 kg
Weight, empty : 27,441 kg
Power to weight ratio : 17.51hp/tonne
Gradient : 60%
Side slope : 30%
Armor : 45mm (maximum)
Armor type : Aluminium
NBC system : None
Night Vision equipment : Yes (Driver only)

LVPT7A1

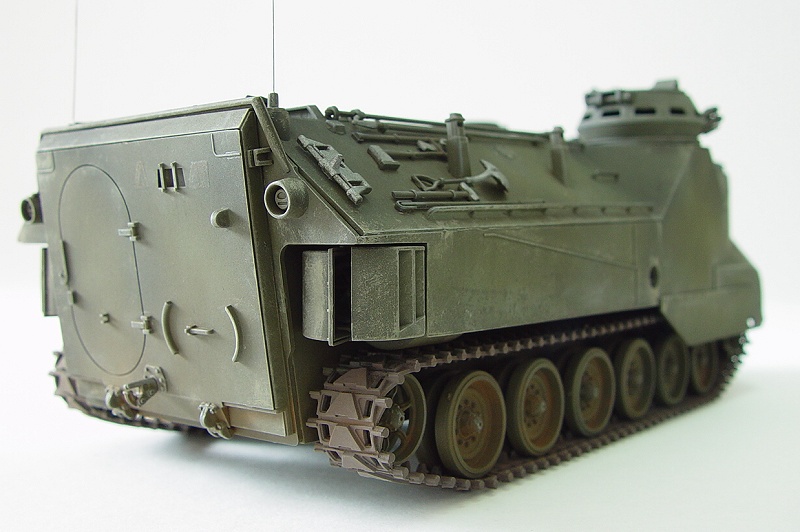

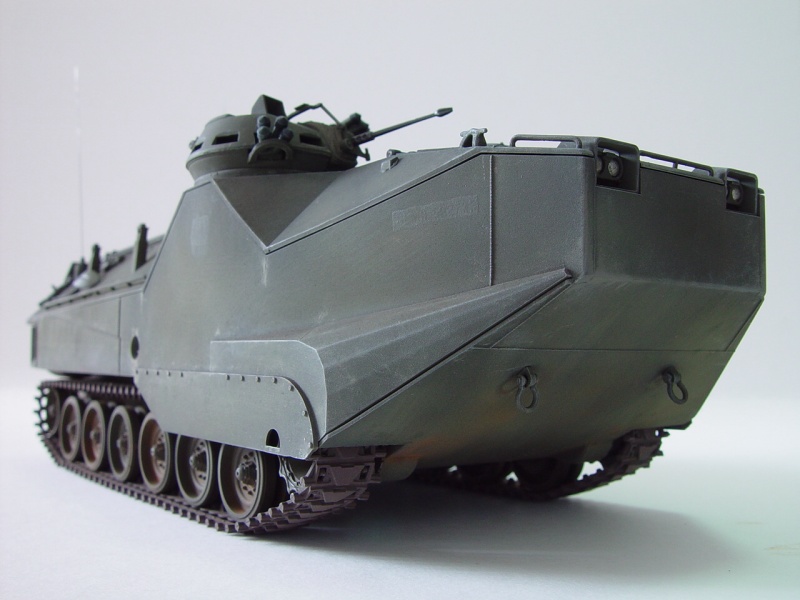

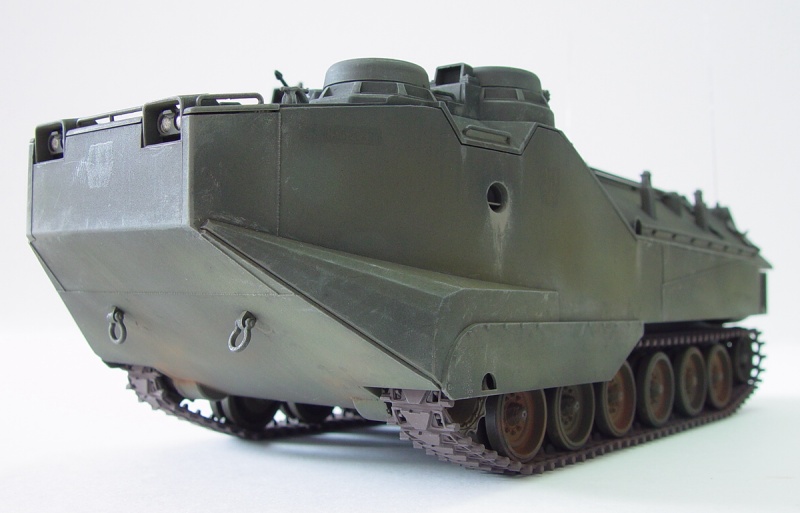

lvpt7a1 image 7 lvpt7a1 image 8 lvpt7a1 image 9
lvpt7a1 image 11 lvpt7a1 image 10 lvpt7a1 image 13
lvpt7a1 image 12 lvpt7a1 image 14 lvpt7a1 image 15
lvpt7a1 image 16 lvpt7a1 image 17 lvpt7a1 image 22
lvpt7a1 image 23 lvpt7a1 image 18

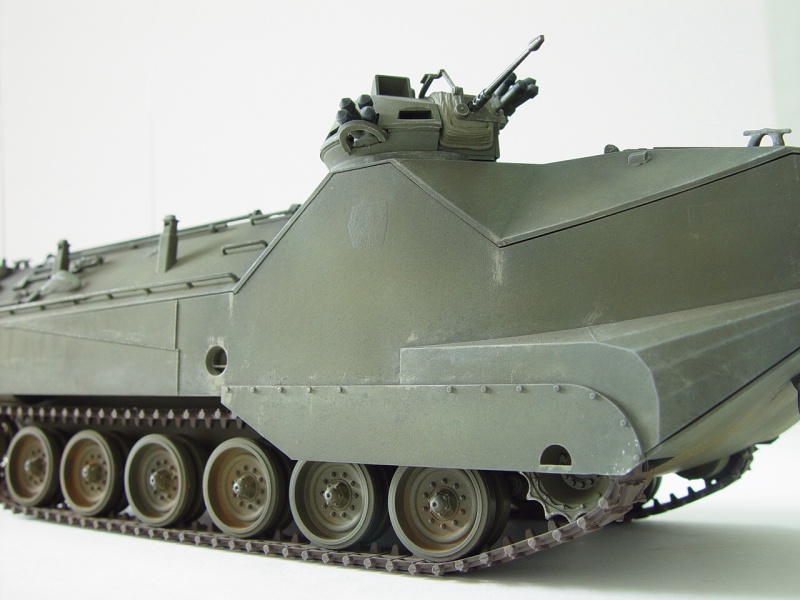

LVTP7A1 image 1 LVTP7A1 image 6 LVTP7A1 image 3
